Ellipse 2 Micro INS

HomeEllipse 2 Micro INS

+ Navigation With External GNSS

Ellipse 2 Micro INS runs an Extended Kalman Filter to provide attitude, heading, heave, and navigation outputs.

It connects to an external GNSS receiver and accepts odometer aiding for land applications.

  • 0.1° Roll and Pitch
  • 5 cm Real-time Heave
  • Light-Weight – 10 grams
  • Designed for volume projects
  • Connection to external GNSS and Odometer

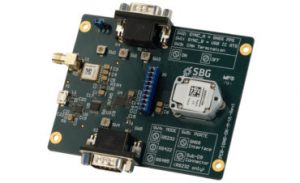

  • Full Development Kit

Small-size and Highly Robust

With its ultra small size, the Ellipse 2 Micro provides a constant behavior in all environments thanks to its extensive calibrated from -40 to +85°C. It is also resistant to shock and vibrations < 2 000g.



5 cm Real-time Heave (Marine application)

The AHRS and INS models provide a 5 cm Heave, automatically adjusted to the wave period.



Connection to external GNSS and Odometer (Land Applications)

With the CAN Protocol, and the fusion with GNSS receiver and odometer, the Ellipse Micro is ideal for automotive applications.
