THN2x-WS

HomeTHN2x-WS
Ranges From -100 to 1250 °C
RF Frequency 868 or 920MHz
(902Mhz available in USA)
Supply voltage receiver 6 to 16V
Supply voltage sensor Changeable 3.6V battery
Supply current 45 mA
Output Data CAN

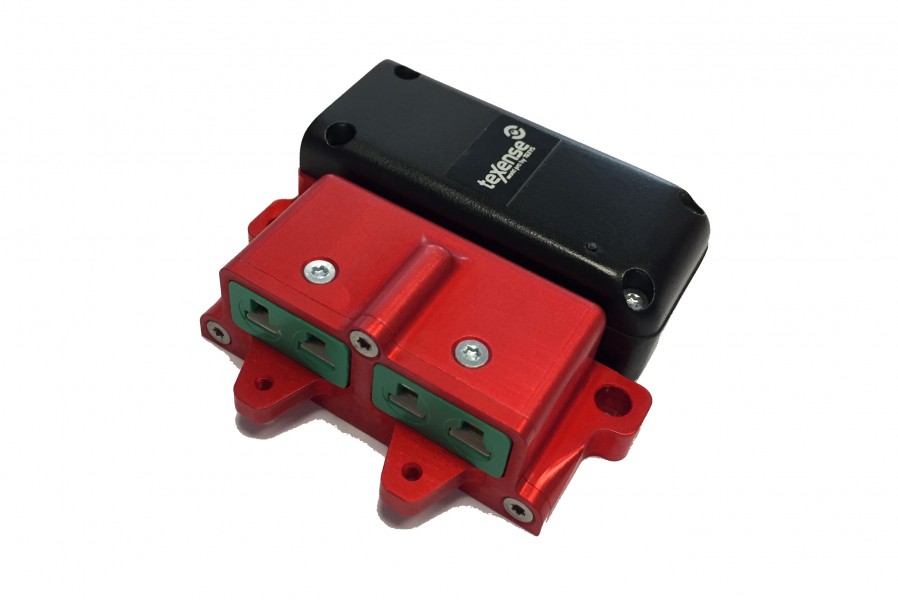

After the success of our TC amplifier modules (THN4x and THN8x) in many different racing series, Texys just released a wireless upgraded version.

CAN frame construction remains the same with 2 bytes per channel.
The data from the wireless sensors are sent to a master located in the middle of the vehicle.
Only one master is needed to collect the data from all 4 corners (or front and rear in motorcycle application)

Different radio frequencies are available to be compatible in any racing series in the world. (868, 902 or 920MHz)

Each sensor has a built in battery, changeable by the team after a race weekend.
Battery life can stand for a all race weekend.
A built in accelerometer in each sensor allows to save battery life. (when the sensor doesn’t detect a minimum longitudinal acceleration, it turns into sleeping mode)
