VBOX 3i uses a powerful GPS/GLONASS receiver logging data 100 times a second to achieve high level accuracy. With IMU integration, USB and Bluetooth connectivity, compact flash card logging and audio functionality for voice tagging, the VBOX 3i represents a flexible solution to a range of testing requirements.

IMU INTEGRATION:

VBOX 3i has the ability to utilise data from a RACELOGIC IMU and uses a Kalman Filter to improve all parameters measured in real-time. IMU integration ensures accurate test results in areas of unreliable satellite reception, typically caused by trees, buildings and bridges.

The vehicle’s body angles are also measured to a high accuracy without the need to use a dual antenna system. Dynamic overshoot is eliminated through lever arm correction.

ACCURACY:

Velocity and heading data are calculated from Doppler Shift in the GPS carrier signal, providing users with unparalleled accuracy. For example, over 10 tests between two light barriers placed exactly 1000m apart, the VBOX will report a distance within ±2-3 cm, on every test, and the average comes out to within less than 1cm. Impressive for a device using satellites 18,000 km away!

Brake distance accuracy is equally impressive, using a brake pedal mounted trigger input, VBOX 3i will measure the braking distance to within ±1.8 cm for a typical 100-0 kph brake stop. More about GPS accuracy.

VBOX 3i comes in three versions, single antenna, dual antenna and (dual antenna) RTK. In conjunction with a DGPS Base Station (Option 1) VBOX 3i Single Antenna can achieve a positional accuracy of 80 cm.

The VBOX 3i has a host of features which makes it a very powerful and flexible vehicle testing data logger.

  • 100 Hz logging to CF memory card
  • High brake stop accuracy up to ±1.8 cm
  • Very low latency: 8.5 ±1.5 mS
  • Oversampled brake/event trigger input (25 nS)
  • 4x analogue inputs
  • 1x default CAN Bus port for input module expansion
  • 1x configurable CAN Bus for vehicle CAN interface or VBOX data output
  • Easy to fit and transport
  • Real-time result display via serial, USB or Bluetooth
  • User configurable logging conditions
  • IMU integration
  • Wide 7 V to 30 V operating range
  • Low current consumption
  • Audio voice tagging

VBOX 3i is compatible with all existing peripherals. See Modules, Telemetry Systems and Display Overview for more information.

IMU INTEGRATION:

VBOX 3i has the ability to utilise data from a RACELOGIC IMU and uses a Kalman Filter to improve all parameters measured in real-time. All captured data is processed at 100 Hz, improving accuracy / noise levels and enhancing the dynamic response to velocity.

IMU integration ensures accurate test results in areas of unreliable satellite reception, typically caused by trees, buildings and bridges.

The vehicle’s attitude (pitch, roll and yaw angles) is also measured to a high accuracy without the need to use a dual antenna system (roll/pitch at 0.06° rms, Yaw at 0.5° rms). Dynamic overshoot is eliminated through lever arm correction.

VBOX 3i can be used for a multitude of test applications such as

  • Brake Testing
  • Handling & Dynamics
  • ADAS & Safety Systems Testing
  • Performance Testing and more.



The VBOX Tools analysis package allows you to carry out sophisticated tests in real-time and in post processing.

All parameters can be viewed in a customisable graph, and the data can be scanned, analysed and manipulated using the very powerful Report Generator function.

RepGen is very customizable, allowing results to be produced for virtually any type of automotive test. All created configurations can be saved and easily recalled for future analysis.

For customers with focused test requirements, we offer dedicated software packages to simplify the test procedure:

  • Aquaplane
  • Coastdown
  • Lane Change
  • Centreline Deviation
  • Brake Testing

INPUTS



  • 2x CAN Bus
    Two CAN Bus interfaces are available. The first CAN Bus connections allows data to be logged from RACELOGIC modules such as TC8 and FIM03. The second CAN Bus interface allows you to log up to 16 CAN signals from a different CAN source (e.g. Vehicle CAN Bus, laser height sensors, or steering wheel sensor). VBOX Tools analyisis software is able to load signal data from an industry standard CAN database file (.DBC).
  • Digital InputBrake / Event Trigger
    By using a physical pressure switch on the brake pedal, a precise ‘start of braking event’ can be captured. The brake/event trigger input is oversampled to 25 nS for high distance accuracy.
    Log Switch
    A start/stop logging switch allows users to manually choose when they wish to record data.
  • 4x Analogue Inputs
    Each of the four analogue input channels have a dedicated 24 bit analogue converter. Data is recorded from each channel simultaneously to avoid latency between analogue channel data. The name, scale and offset of each analogue input channel can be adjusted using VBOX Tools software to allow sensor calibration and therefore logging of data in standard SI units. The analogue input connector also provides two power outputs that may be used for driving sensors. These are in the form of a 5 V DC isolated supply and an output equal to the VBOX power supply voltage. Log rates can be set to either 100 Hz or 500 Hz.
  • Voice Tagging
    VBOX 3i can record a GPS synchronised WAV audio tag up to 30 seconds long to a time accuracy of 0.5 sec. The recorded WAV file is then logged to the CF card.
  • Power Supply
    VBOX 3i can accept a supply voltage between 7-30 V DC. Low current consumption results in extended battery life.



OUTPUTS



  • CAN Bus
    One of the two VBOX CAN ports can be used to output VBOX GPS parameters plus any 12 channels from connected input modules or internal AD channels. The baud rate and CAN id’s for these outputs are user configurable.
  • RS232
    The RS232 connector is used for VBOX configuration and output of real-time GPS data. Provides the facility to connect to a radio telemetry system to offer PC monitoring of test data.
  • USB
    VBOX 3i USB connector can be used for VBOX configuration and to output real-time data at 100 Hz to a PC.
  • Bluetooth
    VBOX 3i comes equipped with an internal Bluetooth Radio allowing remote configuration and remote output of real-time GPS data to any Bluetooth capable PC or Data logger. The Bluetooth connection is capable of sending data at the full 100 Hz rate.
  • 2x Digital Outputs
    The first digital output is assigned to ‘Speed/Distance’ with adjustable ‘Pulses per Meter’ setting, while the second output is a level switch output enabling users to select any one of the logged channels and assign it a threshold value, e.g. output high (5 V) when speed greater than 20 km/h.
  • 2x Analogue Outputs
    Both 16 bit analogue outputs can be configured to output velocity (or other GPS parameters) for use by additional data logging equipment. The voltage output range is from 0 to 5 V DC with a resolution of 76 μV per bit.
  • CF Card
    Data is logged in a space-delimited text format. Recording time dependent on flash card capacity, log frequency, number of channels and logging conditions. Approximately 29Mb per hour used when logging GPS data at 100 Hz; approx. 182 MB per hour total logging capacity. Please note only compact flash cards up to 32 GB capacity are supported.

VBOX 3i measures the following parameters as standard, at 100 samples per second, and purely from GPS/GLONASS:

  • Time
  • Position
  • Velocity
  • Heading
  • Height
  • Vertical velocity
  • Lateral acceleration
  • Longitudinal acceleration
  • Radius of turn
  • Centreline deviation

VBOX 3i Version 4

VELOCITY

  • Accuracy: 0.1 km/h
    (averaged over 4 samples)
  • Units: km/h or mph
  • Update rate: 100 Hz
  • Maximum velocity: 100 mph
  • Minimum velocity: 0.1 km/h
  • Resolution: 0.01 km/h
  • Latency: 8.5 ±1.5 mS****



DISTANCE

  • Accuracy: 0.05 % (<50 cm per Km)
  • Units: Metres / Feet
  • Update rate: 100 Hz
  • Resolution: 1 cm



ACCEL/BRAKE TEST TIME
(Multifunction Display / VBOX Tools)

  • Resolution: 0.01 s
  • Accuracy: 0.01 s



BRAKE STOP ACCURACY

  • Accuracy: ± 1.8 cm
    (for a typical 100-0 kph brake stop)



MEMORY

  • Compact Flash: Type I
  • Recording time: Dependent on flash card capacity***



Environmental and Physical

  • Weight: Approx. 900 grams
  • Size: 170 x 121 x 41 mm
  • Operating temperature: -20°C to +70°C
  • Storage temperature: -30°C to +80°C

ABSOLUTE POSITIONING

  • Accuracy: 2 m*
  • Accuracy with SBAS DGPS: <1 m*
  • Accuracy with RTCM DGPS: 80 cm*
  • Update rate: 100 Hz
  • Resolution: 1.8 mm
  • Height accuracy: 6 m*
  • Height accuracy with DGPS: 2 m*




ACCELERATION

  • Accuracy: 0.50 %
  • Maximum: 20 g
  • Resolution: 0.01 g
  • Update rate: 100 Hz



LAP TIMING
(OLED Display / VBOX Tools)

  • Resolution: 0.01 s
  • Accuracy: 0.01 s **



HEADING

  • Resolution: 0.01°
  • Accuracy: 0.1°


POWER

  • Input Voltage Range: 7 – 30 V DC
  • Power: Max. 5.5 Watts

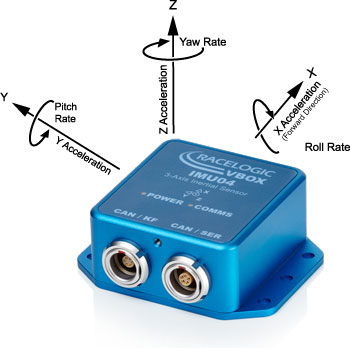

IMU04 INTEGRATION

ACCURACY

  • Pitch: 0.06° rms
  • Roll: 0.06° rms
  • Yaw: 0.5° rms
