IRN2

HomeIRN2
Range From -20 to 100°C
To 300 to 1200°C
 Supply voltage 3.3 to 30 V
 Supply current  4 mA
 Output Signal
 -Standard  0 to 5 V
 -Optionnal  0 to 3 or 0 to 10 V

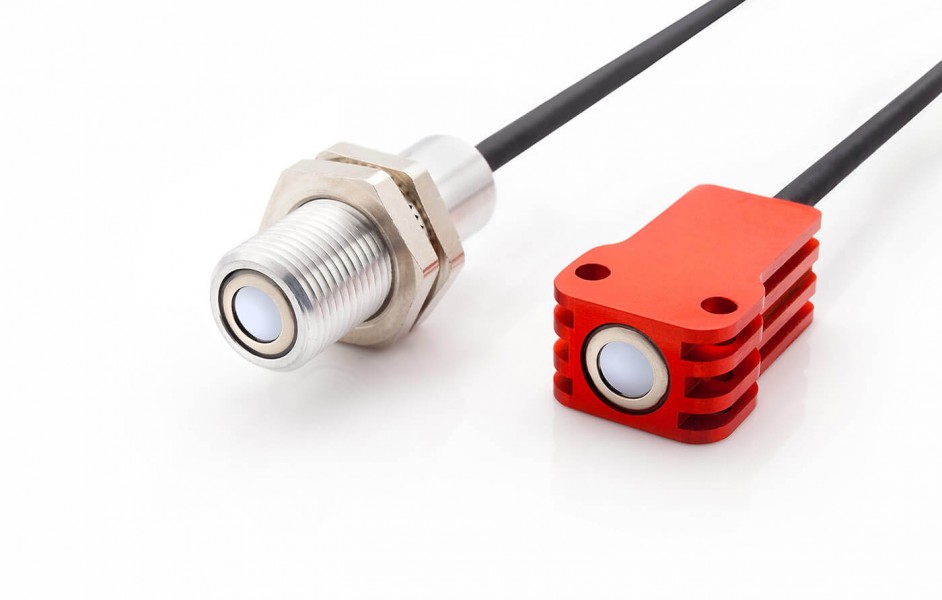

This Texense IRN2 miniature digital infrared allows contact free temperature measurement of objects several centimetres away by detecting the infrared rays emitted by these objects.Its reduced dimensions allow it to be integrated into production equipment or systems.

It operates independently with an analogue output.

The emissivity may be adjusted by programming the product via a USB cable.

Excellent precision for the 150°C and 300°C and 1000°C ranges with values in the region of 0.3% of the full scale.

The output signal is perfectly linear.
