Dedicated ADAS testing: Building on the key features that made VBOX 3i the industry standard data logger for automotive testing and validation, VBOX 3i ADAS has taken the evolution of this family of data loggers and created a whole new species dedicated to ADAS testing.
Outstanding Accuracy: Its new GNSS engine, which is multi-constellation and dual frequency, delivers outstanding RTK signal reacquisition and resilience, ensuring you spend more time logging RTK accurate data on both the test track and the open road.
Easy Set-up: When using VBOX 3i ADAS, the vehicle under test can simultaneously reference any combination of up to three moving targets, two static targets, three road-line references and 99 signposts. This expanded capability enables the evaluation of complex ADAS scenarios with full flexibility to customise the test set up. Tests requiring multi-target and multi-lanes can be easily configured to validate ADAS systems.
The VBOX 3i ADAS offers Euro NCAP-compliant logging rates (100 Hz) and a positional accuracy of less than 2 cm, when used with an RTK Base Station or NTRIP device.
The latest RTK, multi-constellation GNSS receiver delivers centimetre-level accuracy with robust signal reliability even in challenging GNSS environments.

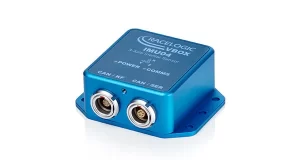

VBOX 3i ADAS has the ability to utilise data from a VBOX IMU and uses a Kalman Filter to improve all parameters measured in real-time at 100 Hz.

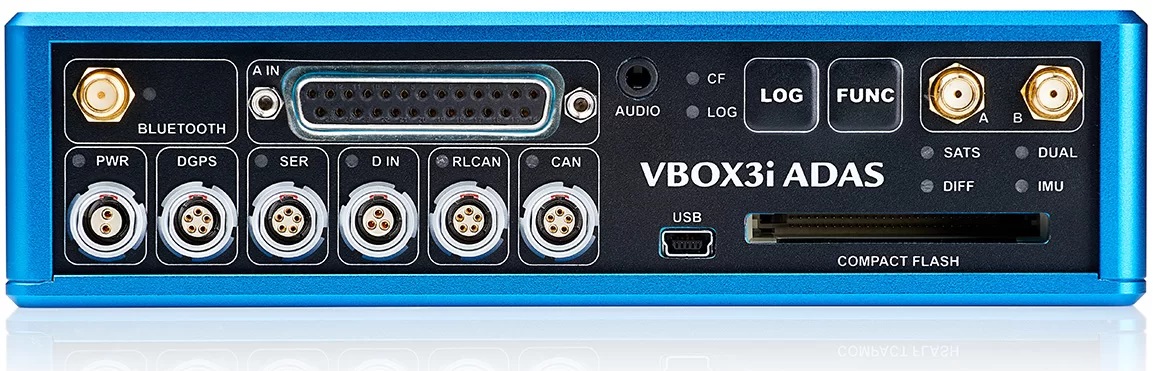

Connect to a laptop or tablet via USB, Bluetooth or Serial for real-time display and analysis of test data in the field.

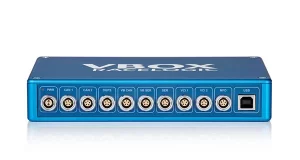

Log up to 32 channels directly from the vehicle’s CAN bus.

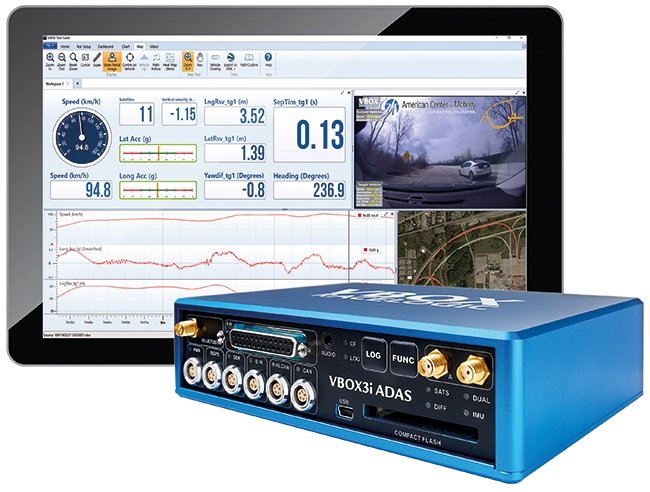

Evaluate the full range of ADAS scenarios with customisable parameters and intuitive data analysis in VBOX Test Suite software.
You can validate the accuracy of almost any Advanced Driver Assistance System using a VBOX 3i ADAS, including Adaptive Cruise Control, Blind Spot Detection, Park Assist, AEB, Lane Keep Assist and Dooring. VBOX 3i ADAS provides Euro NCAP-compliant logging rates (100 Hz) and highly accurate measurements of position, speed, attitude, separation distance and time-to-collision data from multiple vehicles.

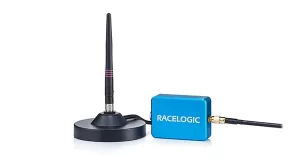

RACELOGIC ADAS radios for V2V communication, giving relative longitudinal and lateral distances to cm accuracy.

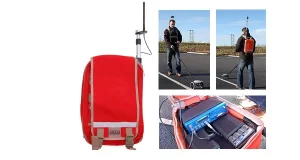

Straight or curved lane markings can be mapped out and plotted to cm-level accuracy when using this survey trolley kit alongside your VBOX 3i ADAS and RTK correction system. The survey trolley comes with a line mapping rover wheel, a custom rucksack, a radio antenna and a battery pack.

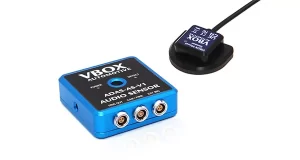

A set of audio and visual sensors designed specifically to test the required elements of Euro NCAP scenarios.
Accuracy
0.03 m/s
Update rate
100 Hz
Resolution
0.01 km/h
Latency
Fixed CAN delay, no IMU integration: 15.5 ms
Fixed CAN delay, with IMU integration: 20 ms
Accuracy with RTK
V: 1 cm + 1 ppm; H: 0.6 cm + 0.5 ppm *
Accuracy with DGPS
V: 0.7 m; H: 0.4 m*
Accuracy with SBAS
V: 0.8 m; H: 0.6 m*
Accuracy (Standalone)
V: 1.9 m; H: 1.2 m*
Update rate
100 Hz
Resolution
1.8 mm
Accuracy
0.05 % (<50 cm per km)
Update rate
100 Hz
Resolution
1 cm
Accuracy
0.1°
Resolution
0.01°
